BORING MACHINES - T TYPE BORER

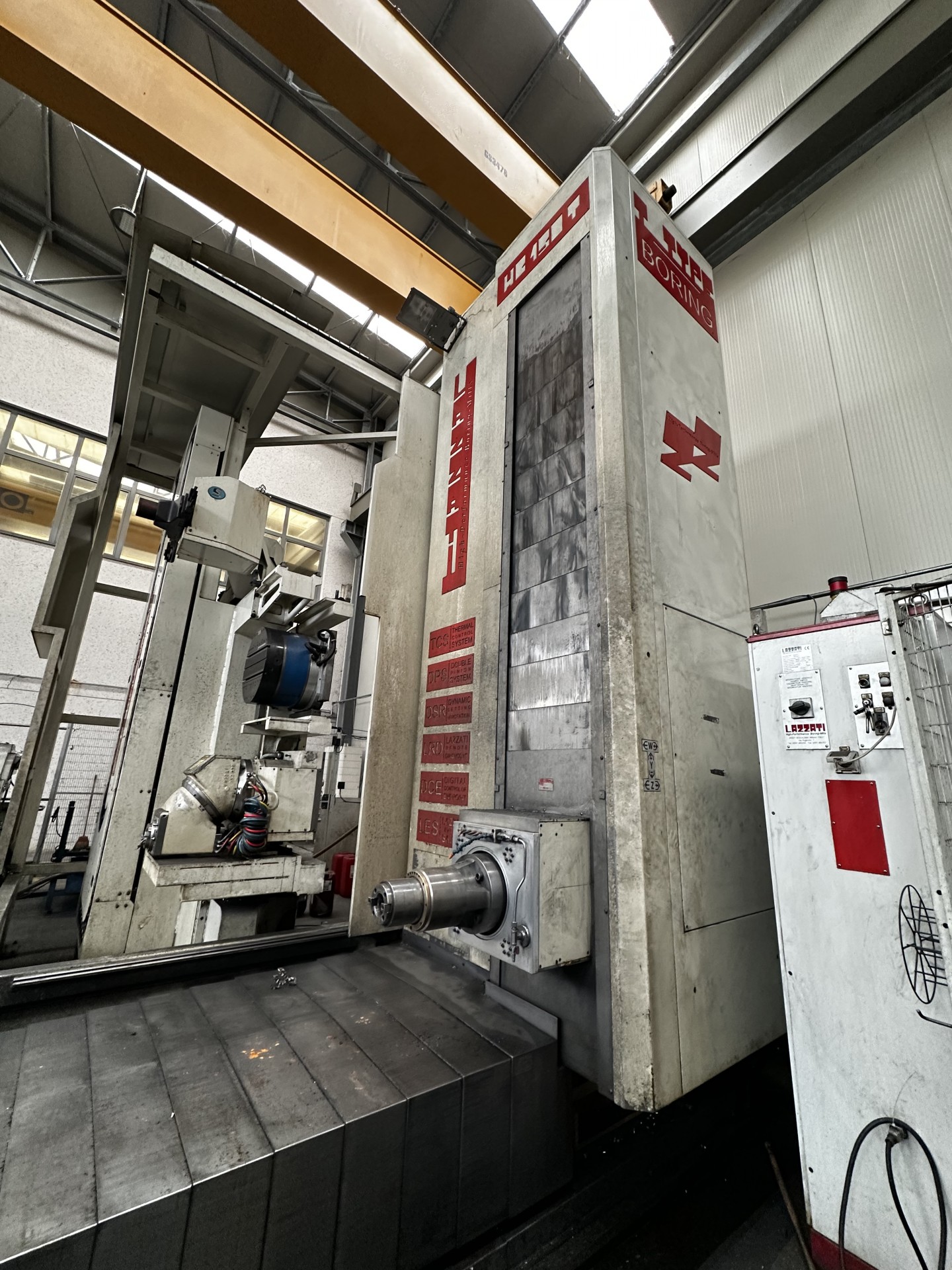

LAZZATI HB 150 T LINEA T-TYPE - UNIVERSAL AUTOMATIC HEAD 1°-1° and D ANDREA UT 5/500 S FACING HEAD
Condition:
Technical features

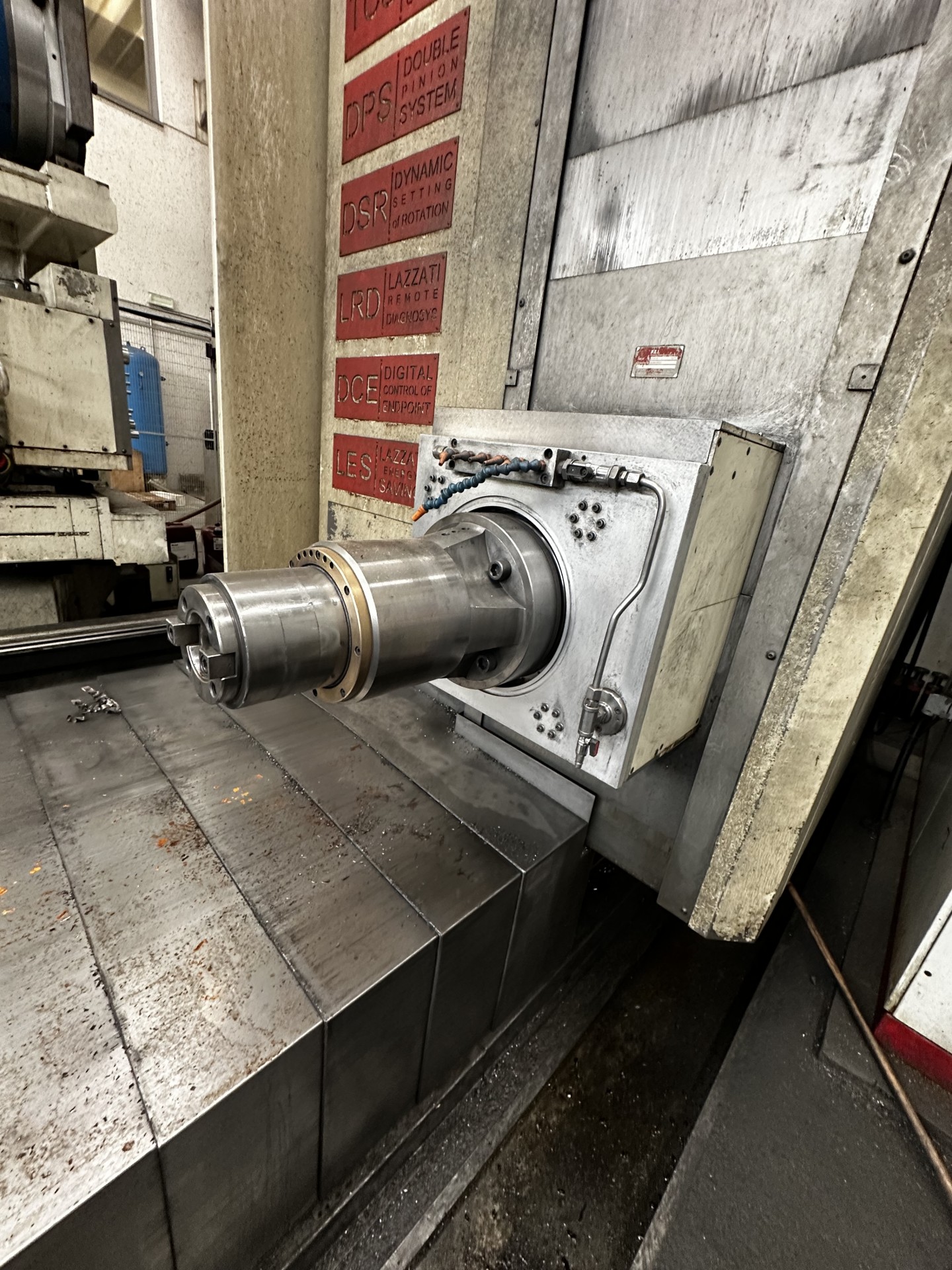

SPINDLE DIAM
150 MM
X AXIS TRAVEL
6000 MM
Z AXIS TRAVEL
2300 MM
Y AXIS TRAVEL
2600 MM
W AXIS TRAVEL
900 MM

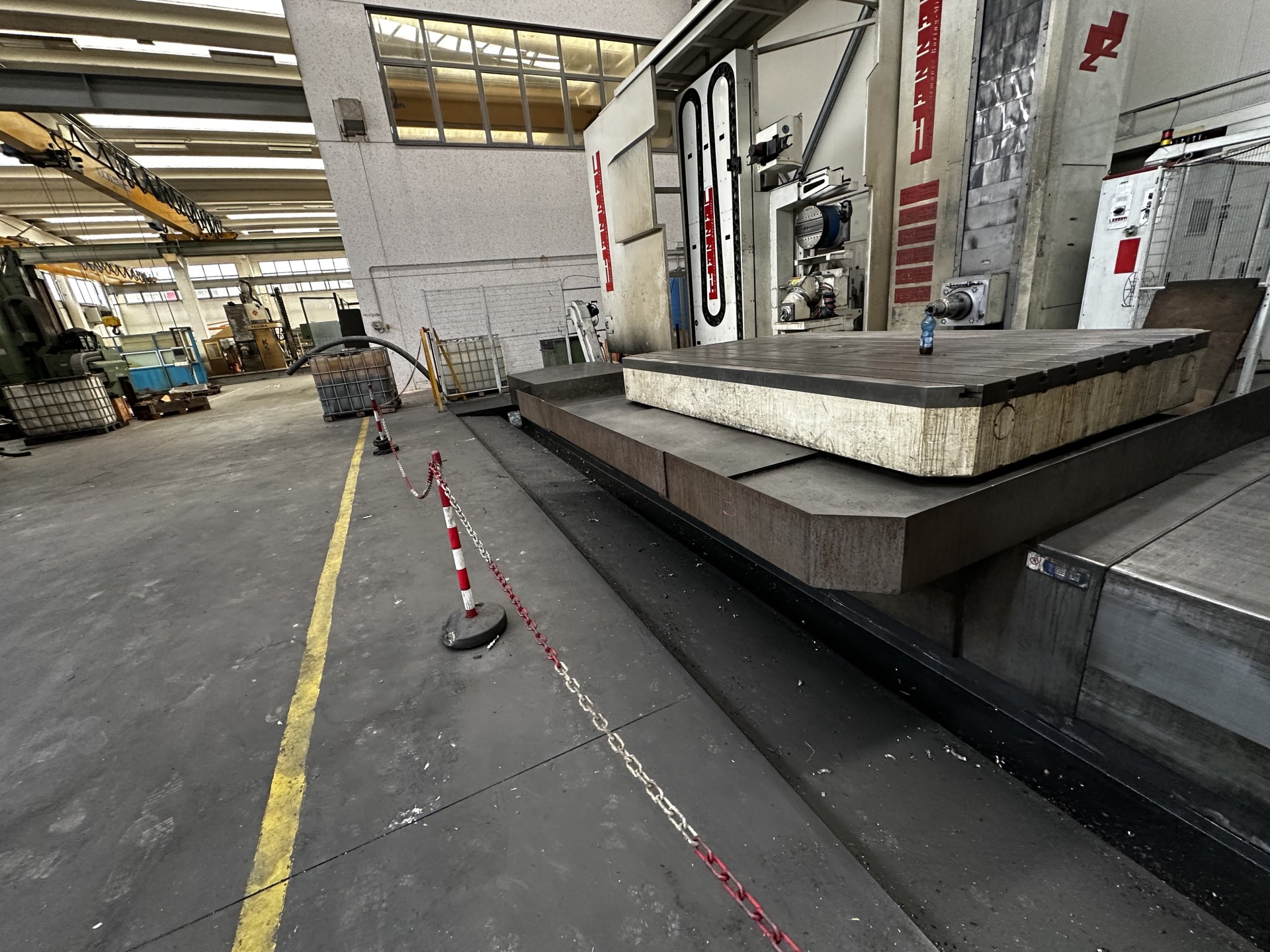

TABLE DIMENSIONS
2000 X 3000 MM
MAX LOAD CAPACITY
30 TON
SPINDLE NOSE TAPER
ISO 50
SPINDLE MOTOR POWER
53 KW in S1 - 65 KW in S6
SPINDLE SPEED
3250 RPM
ATC
120 POSITIONS
RAPID FEEDS
X AXIS: 12 M/MIN - Y and Z AXIS: 15 m/min - W AXIS: 7,5 M/MIN
FACEPLATE DIAM
D'ANDREA UT 5/500 S
CNC
HEIDENHAIN TNC 530
OTHER DETAILS
UNDER POWER
YEAR OF MANUFACTURE
2015 - INSTALLED IN 2017
ACCESSORIES

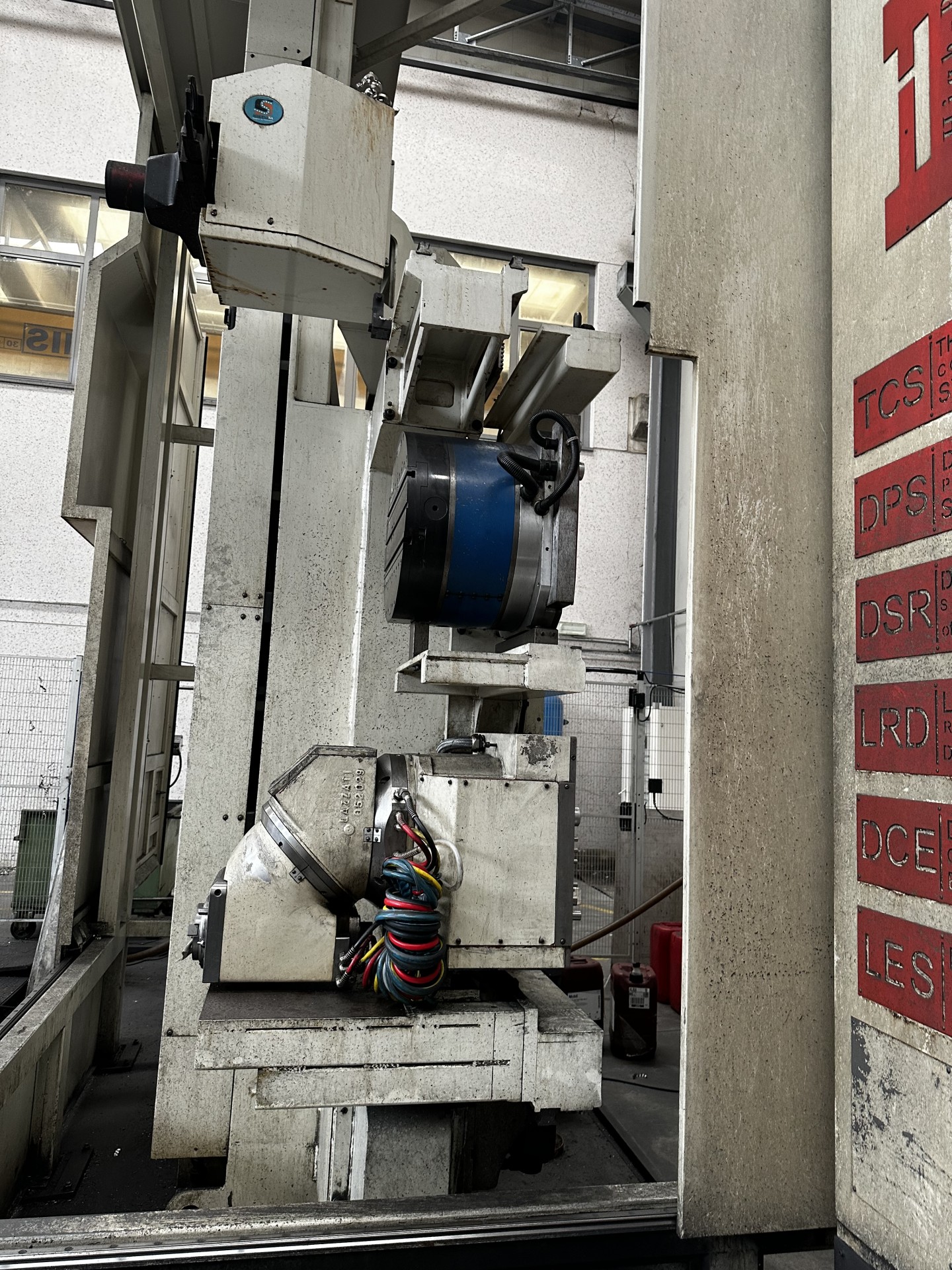

UNIVERSAL AUTOMATIC HEAD 1°-1°
D'ANDREA UT 5/500 S

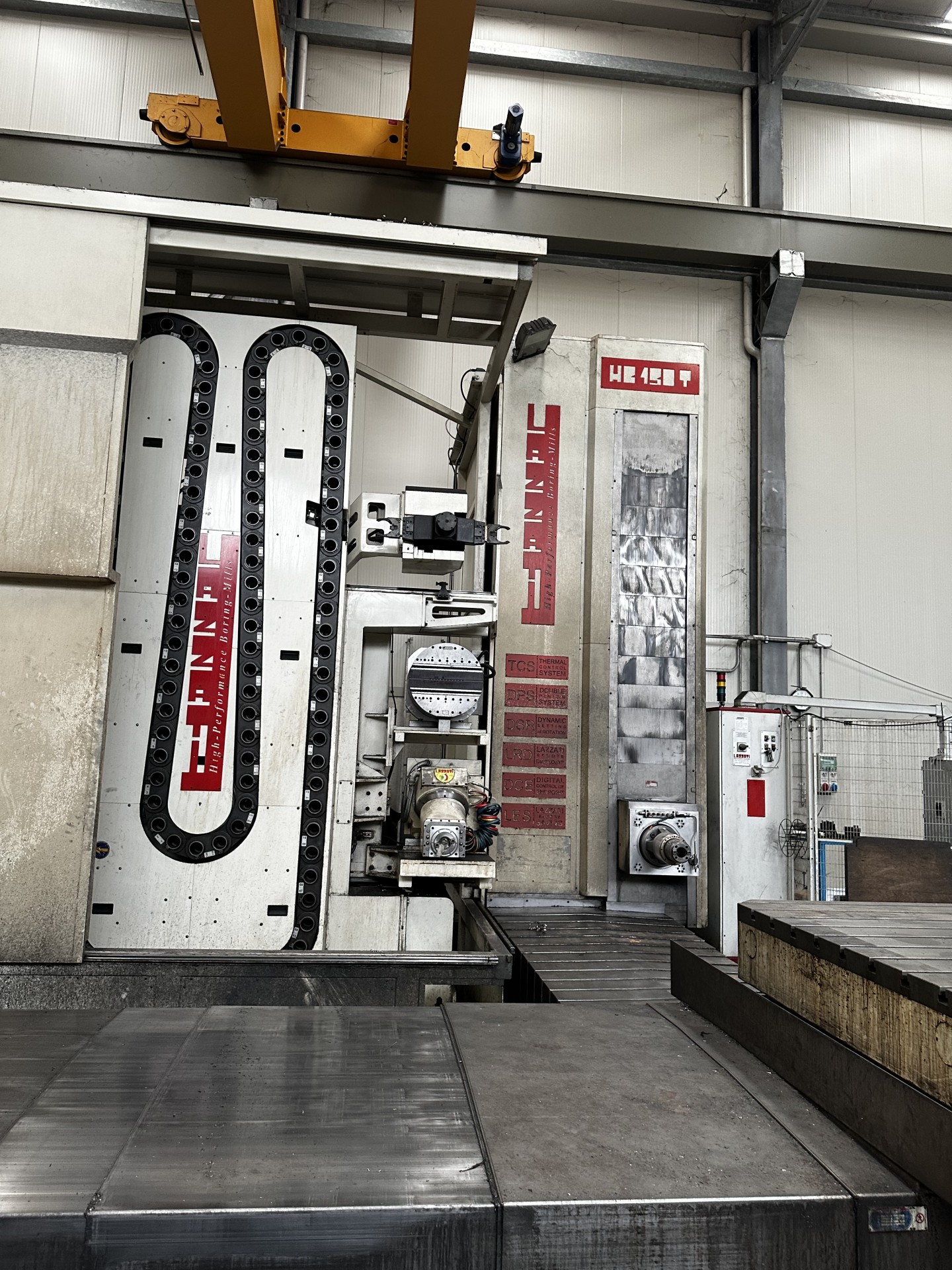

PICK UP FOR CHANGE HEAD 3 POSITIONS
BORE EXTENSION
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
D'ANDREA UT 5/500 S
PICK UP FOR CHANGE HEAD 3 POSITIONS
BORE EXTENSION
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
