This machine is no longer available. We invite you to view our extensive catalog of used machines.

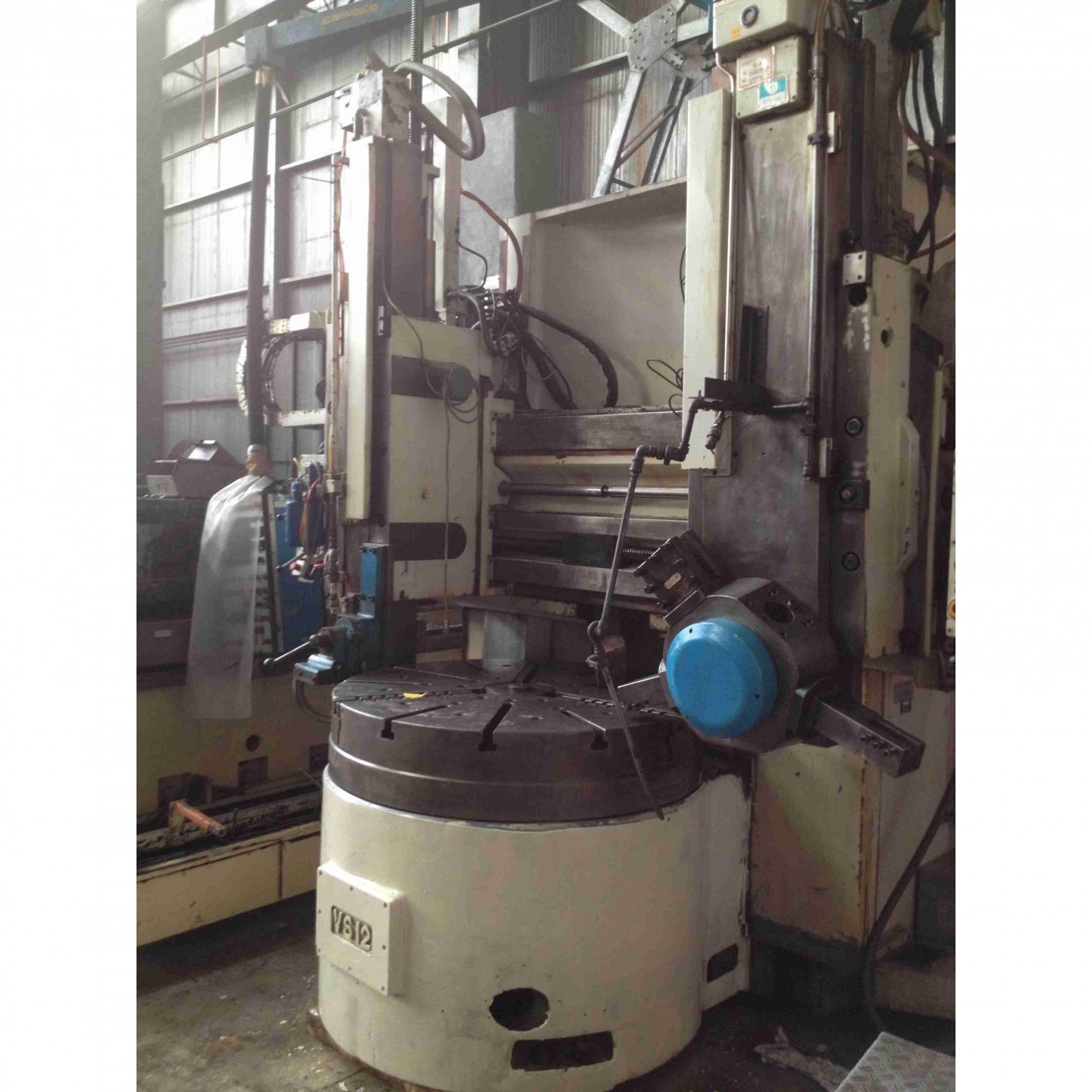

_1744902873_1744902874.jpg "MORANDO VS 12 WITH GRINDING DEVICE - VERTICAL LATHES / VTL MORANDO - 1")
LATHES - VERTICAL LATHES / VTL
MORANDO VS 12 WITH GRINDING DEVICE
(Sold)
Condition:
Technical features
PLATEAU DIAMETER
1200 mm
MAX TURNING DIAM
1400 mm
MIN INTERNAL TURNING DIAM WITH RAM
280 mm
MAX LOAD CAPACITY
7500 kg
MAX TURNING HEIGHT
1000 mm
RAM TRAVEL
1000 mm
MAX HEIGHT UNDER CROSS RAIL
1080 mm
CROSS RAIL VERTICAL TRAVEL
800 mm
CARRIAGE INCLINATION
25°
SPINDLE MOTOR POWER
50 hp
SPINDLE SPEED ROTATION
5 - 250 rpm
MACHINE WEIGHT
14.500 kg
ACCESSORIES
grinding device , DRO HEIDENHAIN 2 axis
