This machine is no longer available. We invite you to view our extensive catalog of used machines.
DEEP HOLE MACHINES - DEEP HOLE DRILLING MACHINES

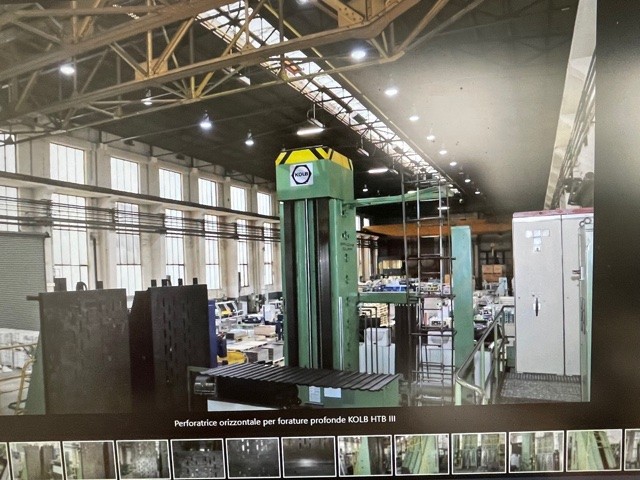

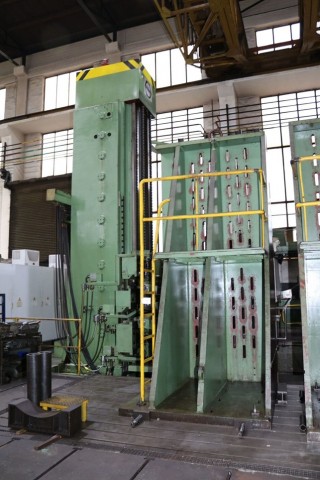

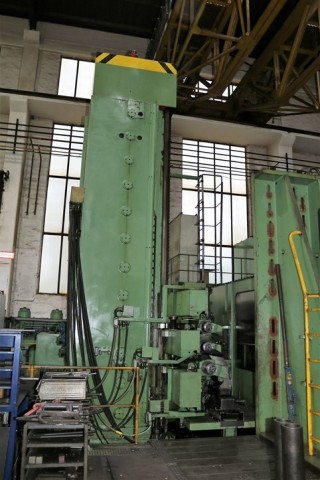

KOLB HTB 3
(Sold)
Condition:
Technical features
MAX DRILL DIAM
65 mm
MAX DRILL DIAM WITH PRE-DRILL
80 mm
MAX DRILL DIAM WITH 3 SPNDLES
32 mm
X TRAVEL
5000 mm
Y TRAVEL
3000 mm
Z TRAVEL
1100 MM ( + 500 MM )
DISTANCE OF THE 3 SPINDLES ONE FROM THE OTHER
MIN 250 MM / MAX 400 MM
MAIN SPINDLE WORKING AREA
5000 X 3000 MM
WORKING AREA WITH 3 SPINDLES MINIMUM DISTANCE
5000 X 3500 MM
WORKING AREA WITH 3 SPINDLES MAX DISTANCE
5000 X 3800 MM
SPINDLE NOSE TAPER
ISO 50
SPINDLE MOTOR POWER
40 KW
SPINDLE SPEED
36-900 RPM / 112-2800 RPM
N.3 SPINDLE SPEED
45-1120 RPM / 112-2800 RPM
RAPID FEEDS
5000 MM/MIN
CNC
SIEMENS 550 C
OTHER DETAILS
BTA and GUN DRILL
ACCESSORIES

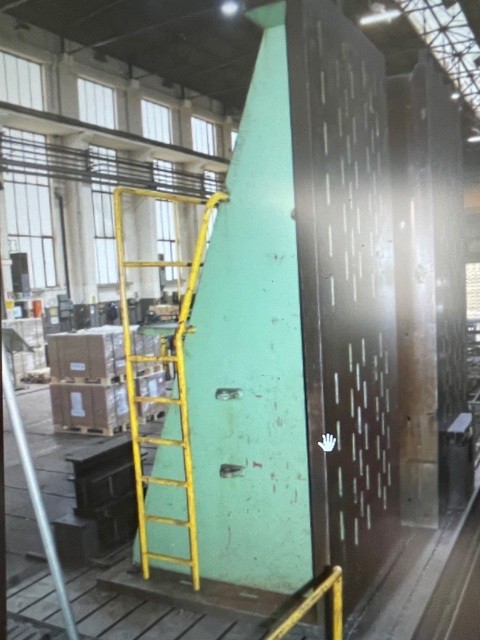

2 ANGLE PLATES 1800 x 1900 x h 4000, weight 14.500 kg each one - 2 FLOOR PLATES 6000 x 1500 x h 390 each one
