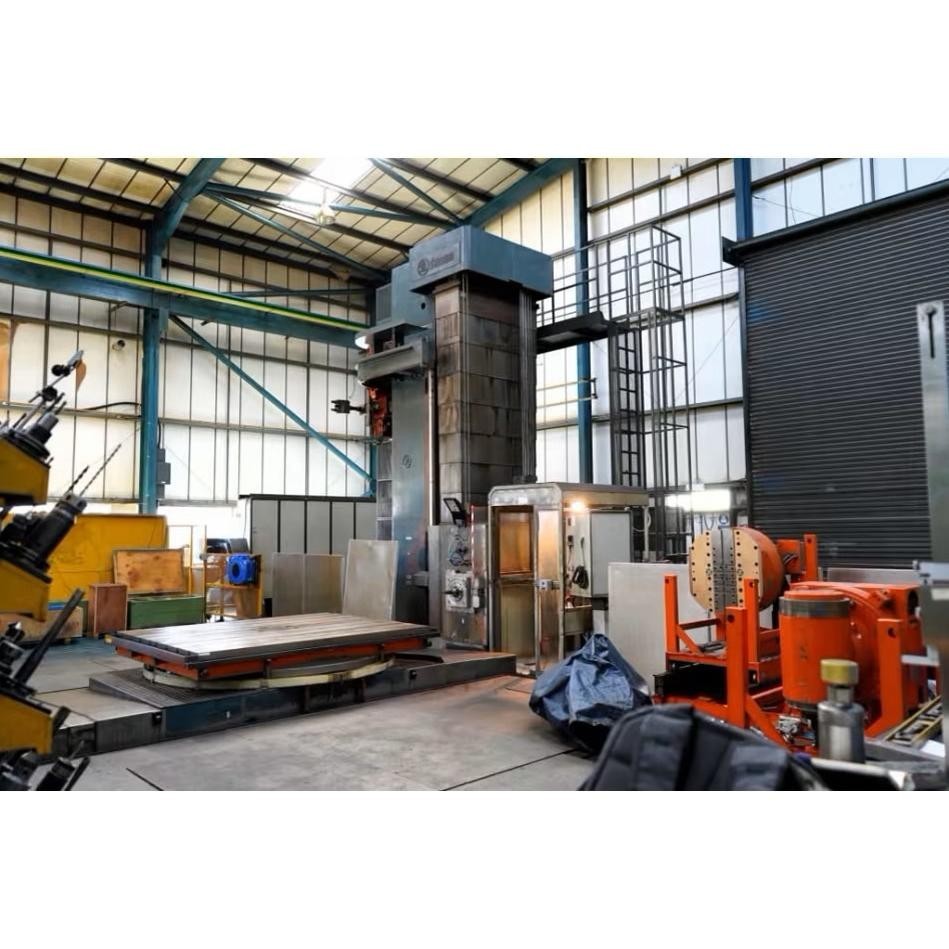

_1711466419_1711466419.jpg "SKODA W 150 CNC - FLOOR TYPE BORER SKODA - 1")
BORING MACHINES - FLOOR TYPE BORER
SKODA W 150 CNC
(Sold)
Condition:
Technical features
SPINDLE DIAM
150 MM
RAM SECTION
380 X 380 MM
X AXIS TRAVEL
6000 MM
Z AXIS TRAVEL
1000 MM
Y AXIS TRAVEL
3000 MM
W AXIS TRAVEL
800 MM

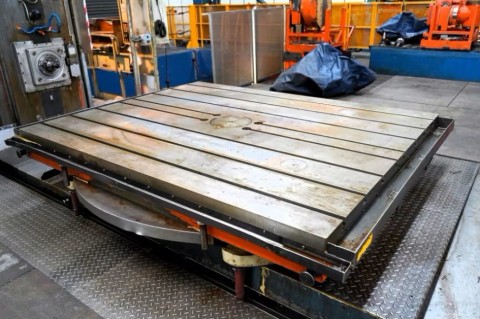

CNC ROTARY TABLE DIMENSIONS
2500 X 2000 MM
MAX LOAD CAPACITY
25 TON
TABLE TRAVEL
1800 MM
SPINDLE NOSE TAPER
ISO 50
SPINDLE MOTOR POWER
50 KW
SPINDLE SPEED
2-2300 RPM
GEAR NUMBER
3

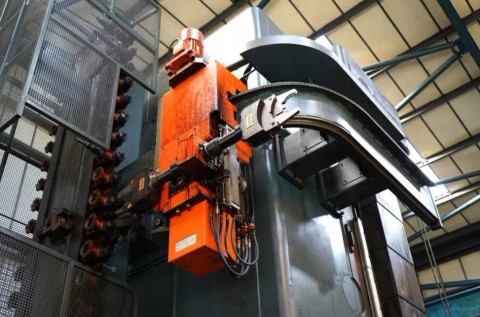

ATC
61 POSITIONS
X AXIS RAPID FEEDS
1-12 M/MIN
Z AXIS RAPID FEEDS
6 M/MIN
Y AXIS RAPID FEEDS
1-10 M/MIN
W AXIS RAPID FEEDS
6 M/MIN
CNC
SIEMENS 840 C
OTHER DETAILS
COOLANT THROUGH SPINDLE
YEAR OF MANUFACTURE
1997
ACCESSORIES

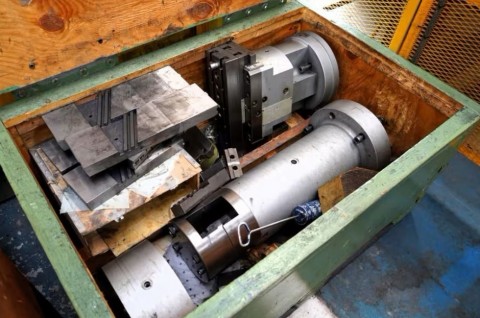

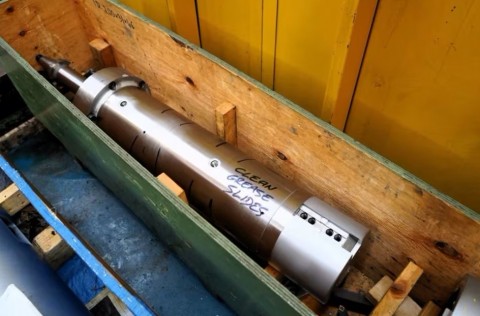

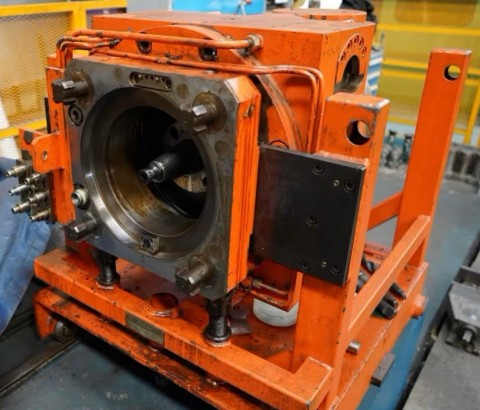

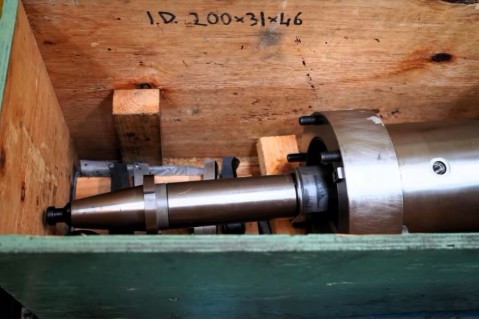

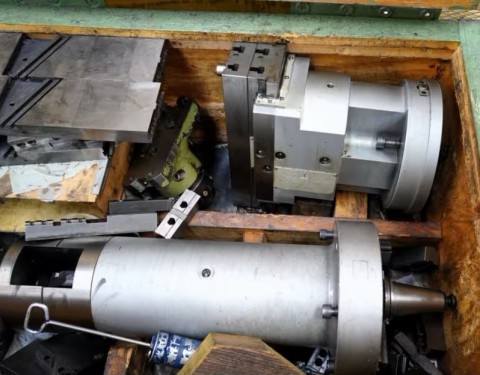

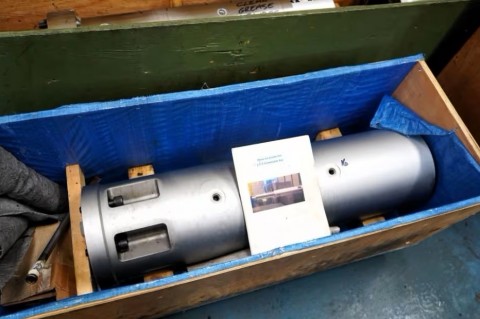

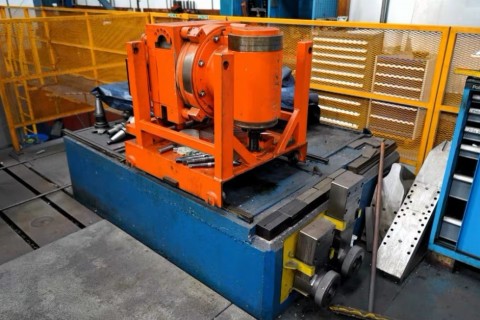

01 CNC HEAD WITH JOINT - 01 CNC FACING HEAD TRAVEL 300 MM AND DIAM 650 MM - PICK UP FOR HEADS LOADING - WATER THROUGH SPINDLE - WATER TANK CAPACITY 1250 L - RENISHAW - 01 FACING HEAD FTV CH 16 - 01 BORING BAR DIAM 200 ( with variable diam ) AND LENGTH 800 MM - 01 boring bar diam 200 ( with variable diam ) AND LENGTH 640 MM - 01 EXTENSION FOR BORING BAR DIAM 200 MM AND LENGTH 930 MM - TOOL RACK WITH TOOL HOLDERS - CONES - TOOLS ETC.. - SURROUNDS GUARDS - CHIP CONVEYORS
